Images are for illustration purposes only. Actual product may vary, make sure to verify the specifications and datasheets.

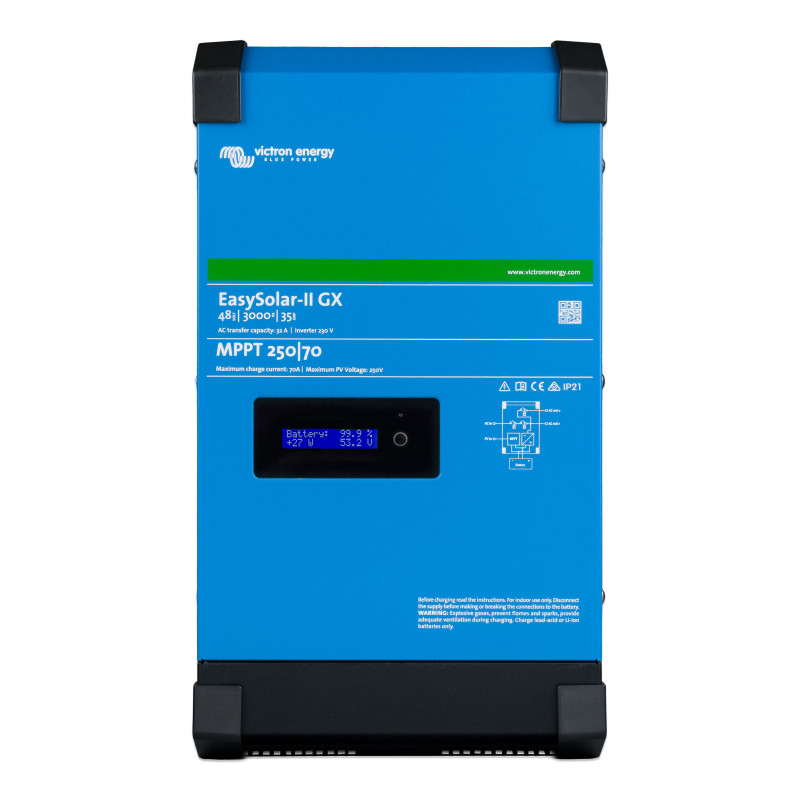

EasySolar-II 48/3000/35-32 MPPT 250/70 GX

₹158,103.68
Tax included

The all-in-one solar power solution

Quantity
Last items in stock

The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

  • A MultiPlus-II inverter/charger
  • A SmartSolar MPPT -Tr solar charge controller
  • A GX device with a 2 x 16 character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and wifi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.

The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g. VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
  • A USB port
  • A Ethernet port
  • A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

PMP482307010

Data sheet

Battery Voltage
48V
Cont. AC power at 25°C (VA)
3000VA
Peak power (W)
5500W
max PV input voltage
250V
Charge Current
70A

Download

ds-easysolar-II-48-250-gx

Datasheet EasySolar-II 48/3000/35-32 MPPT 250/70 GX

Download (347.32KB)
